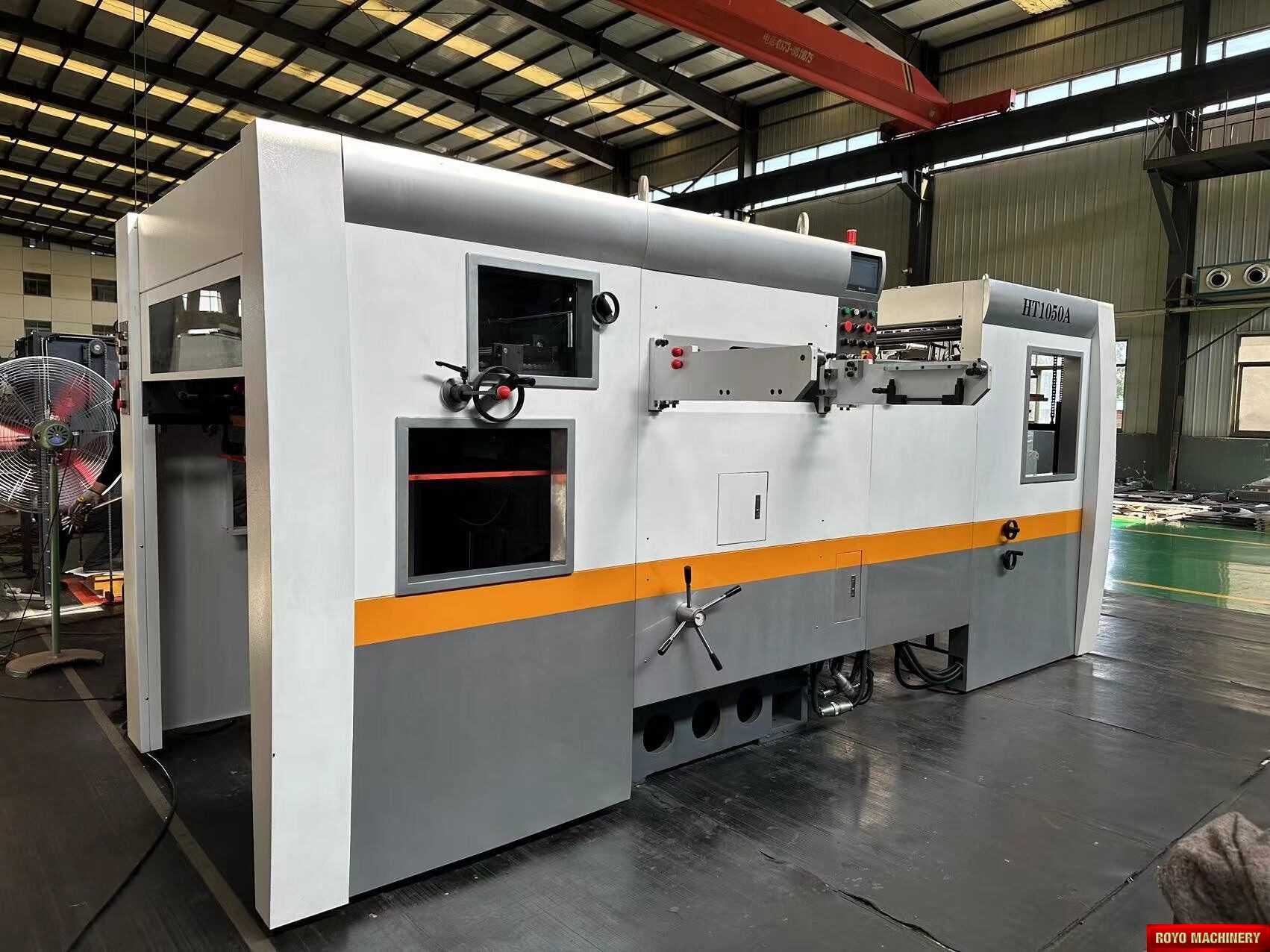

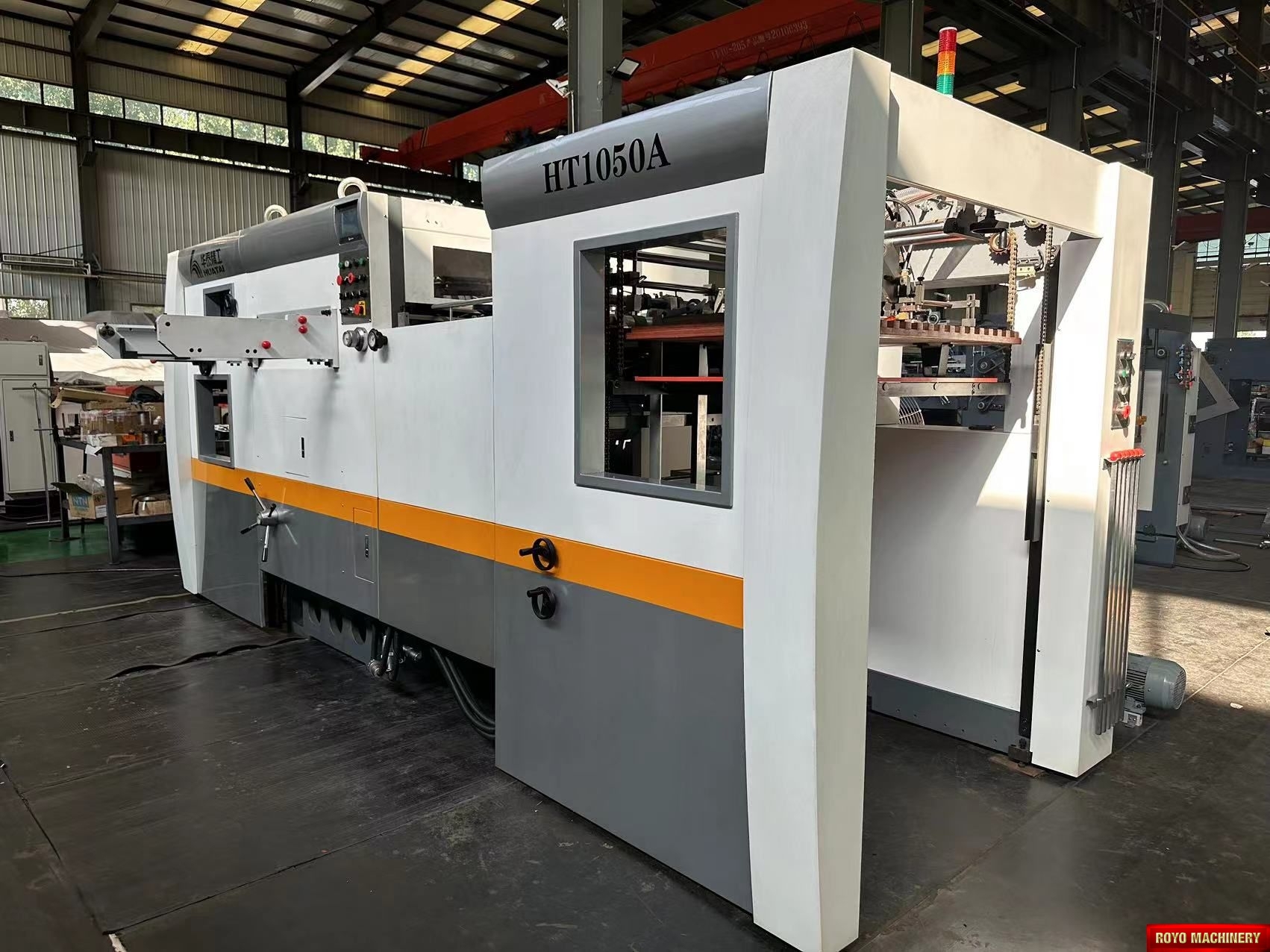

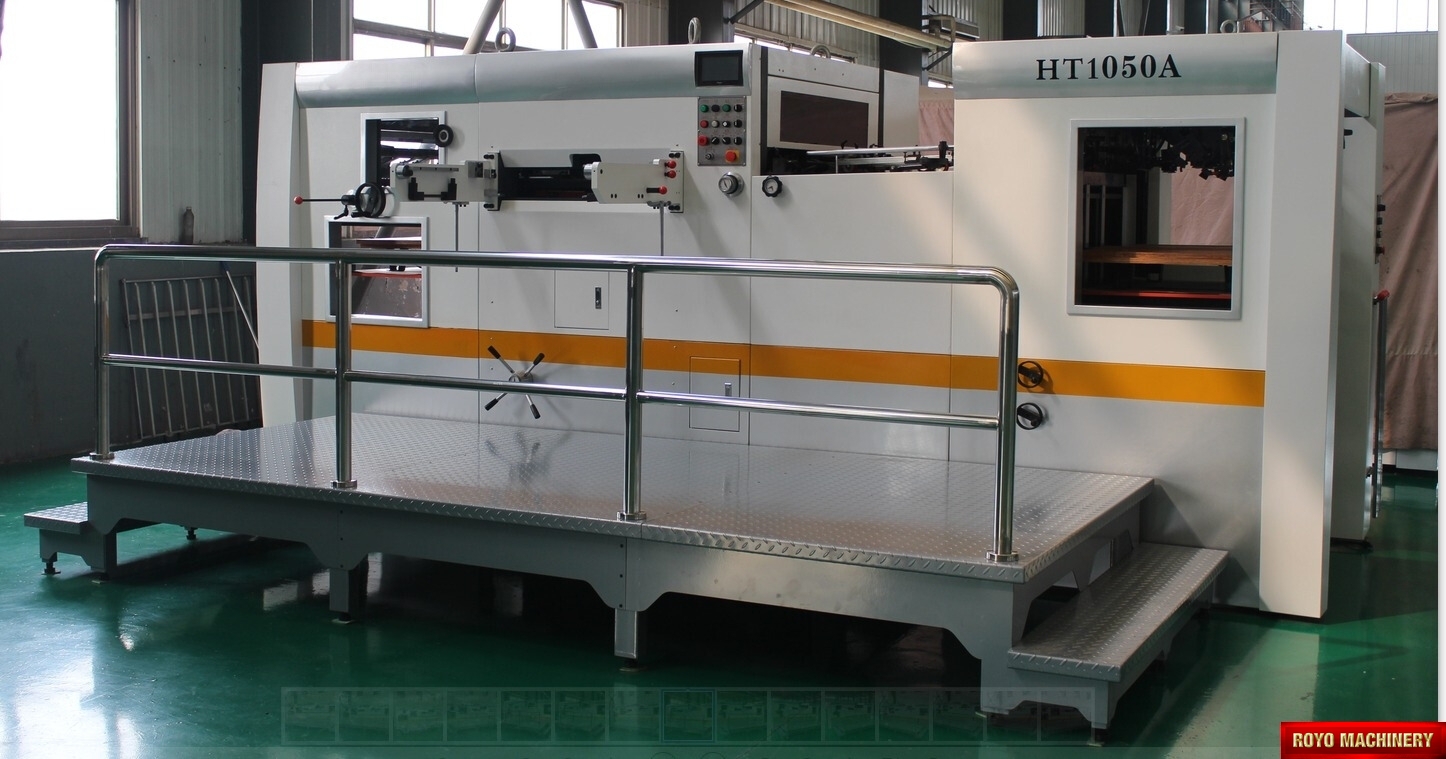

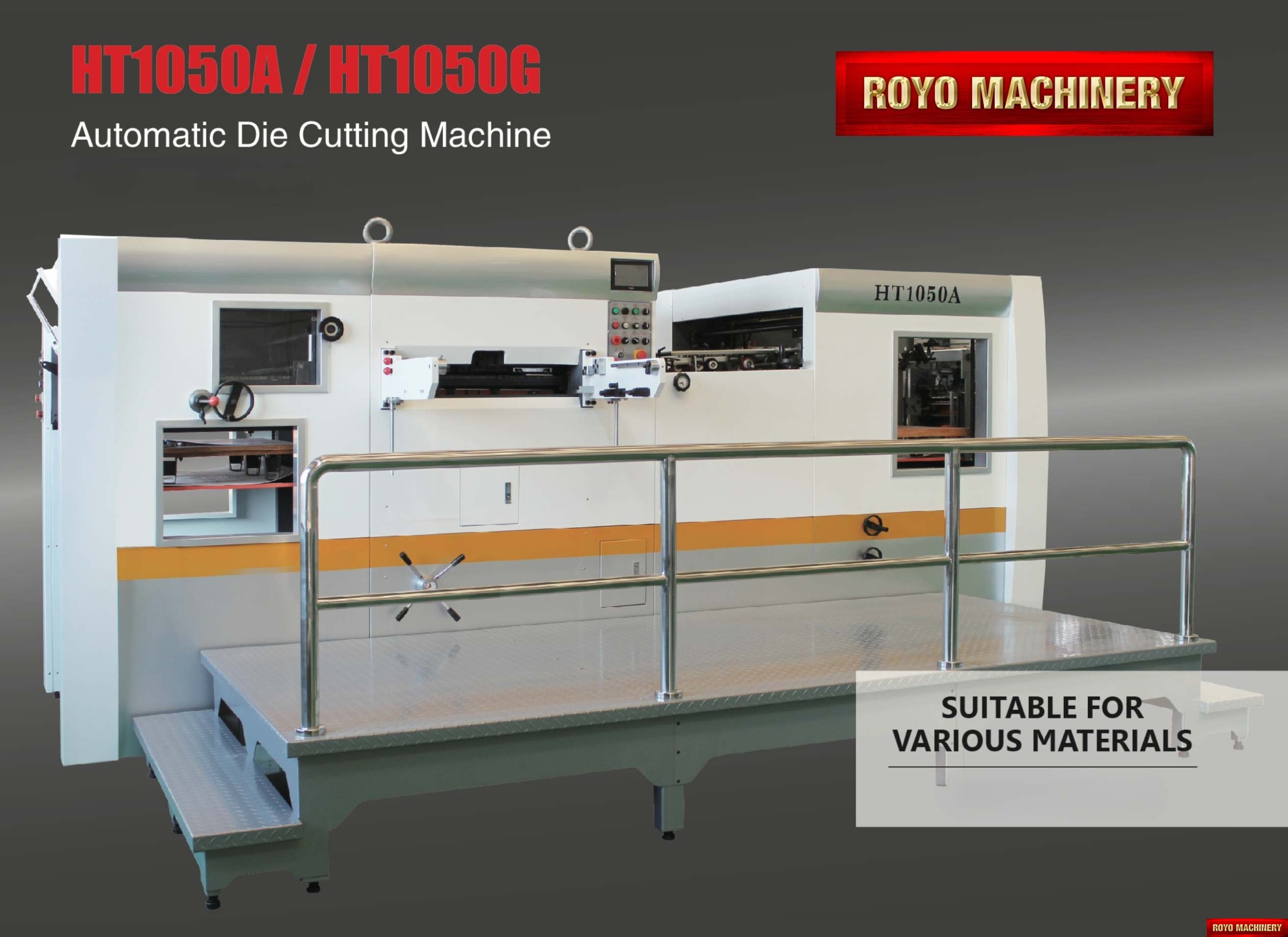

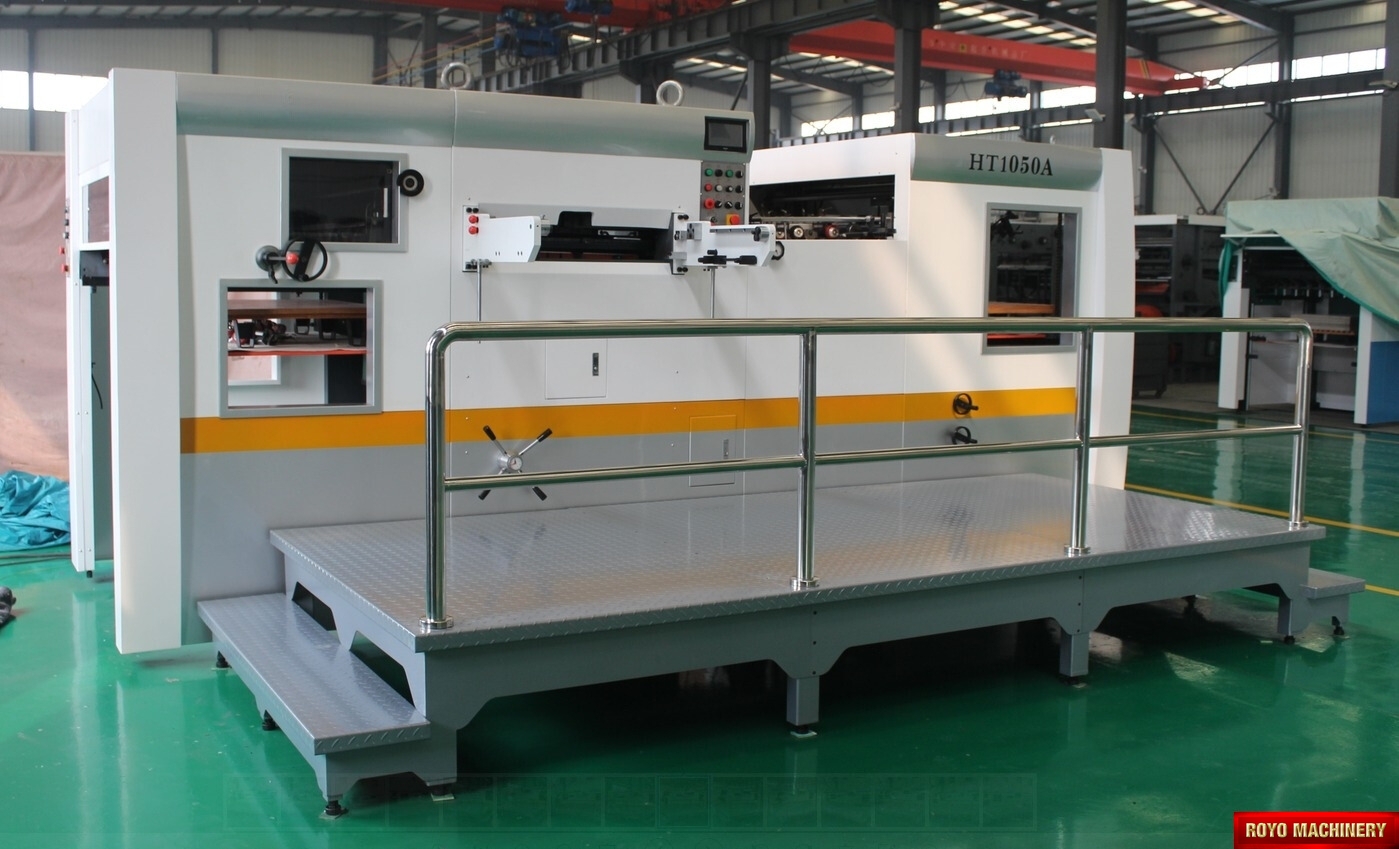

Reconditioned Die Cutter Royo Machinery RHT-1050

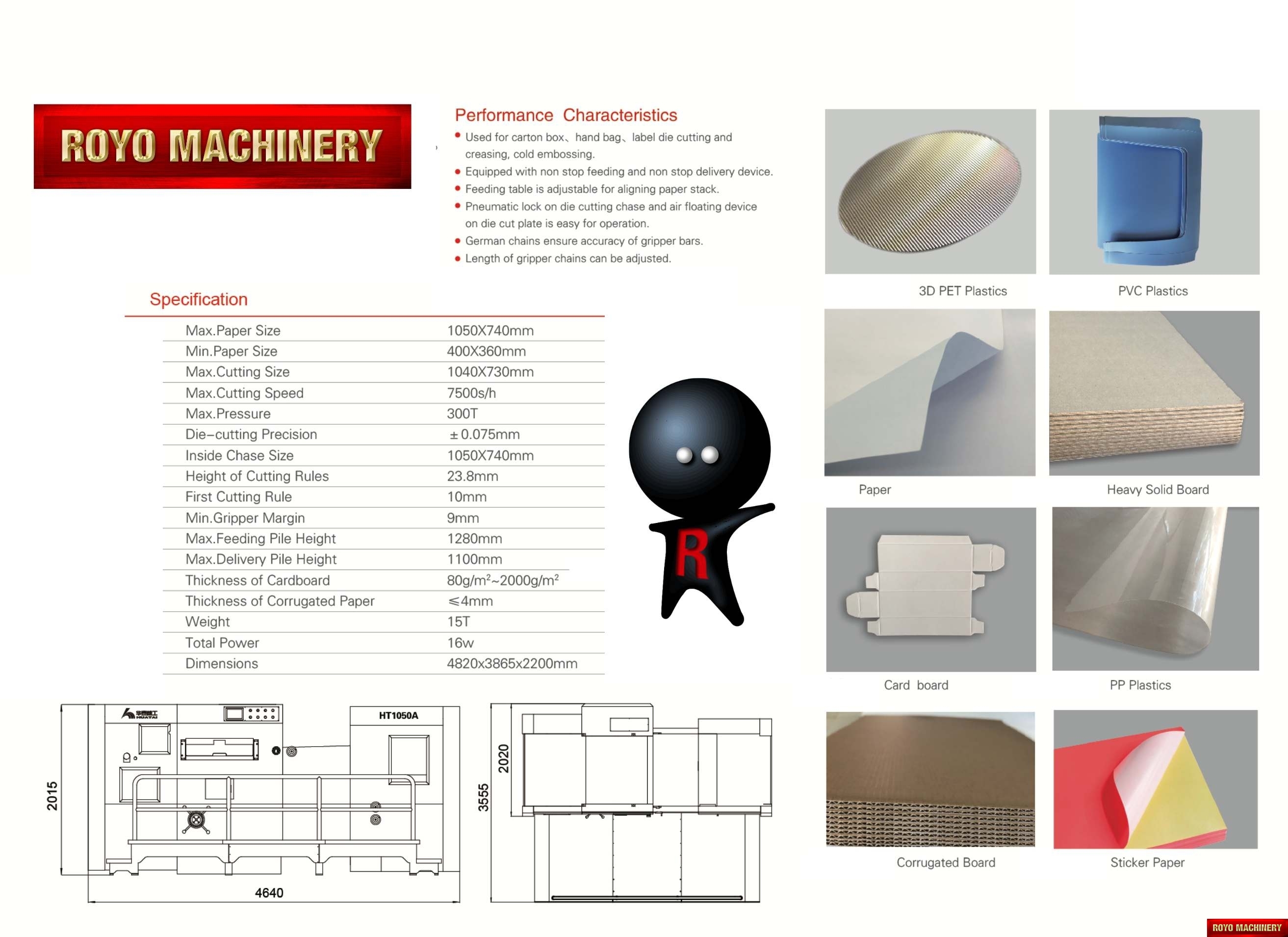

Specifications
- Equipment ID: 7947
- Type: Die Cutter
- Serial no: Pending
- Model: RHT-1050
- Manufacturer: Royo Machinery
- Paper Size: 740 x 1050 mm
- Year: 2026
- Imp Circa:
- Color: NA
- Perfector: NA
- Condition: Excellent
Features
Max. feeding pile height: 1280mm, Dimensions: 4820 x 3865 x 2200mm, Central lubrication with auto pump , Max. paper size: 1050 x 740mm, Voltage: 220V 3PH 60Hz, Min. paper size: 400 x 360mm, Total Power: 16kw, Max. Speed: 7500 strokes per hour, Total weight: 15 Tons, Feeding Pile Height: 1280mm, Delivery Pile Height 1100 mm, Min. gripper margin: 9mm, Max. die cutting size: 1040 x 730mm, Max. die cutting pressure: 300 Tons, Die cutting precision: +/- 0.075mm, Digital LED control panel, Die cutting chase pneumatic locking mechanism, Corrugated board up to 4mm, Automatic pressure adjustment, Air clutch, Machine control via color touch screen, Non-stop feeder and delivery, Paper or cardboard thickness: 80-2000 gsm, Pull or Push side lay on both sides, Step-less speed control, Suggested HS code: 8441.4000 (Automatic)
