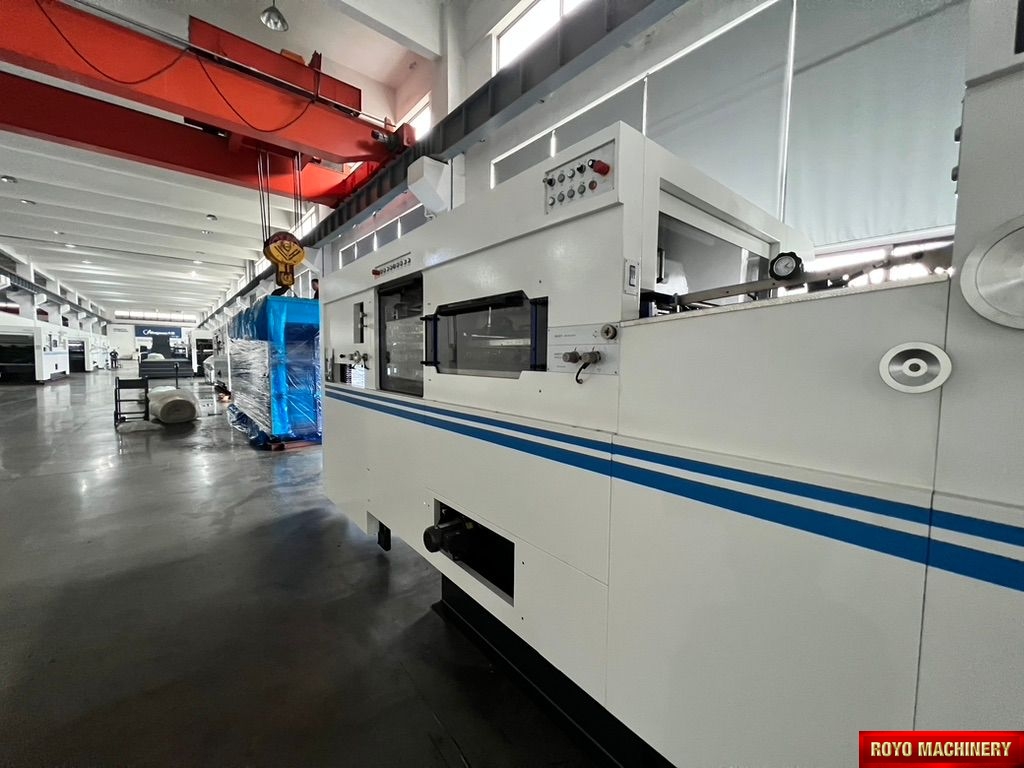

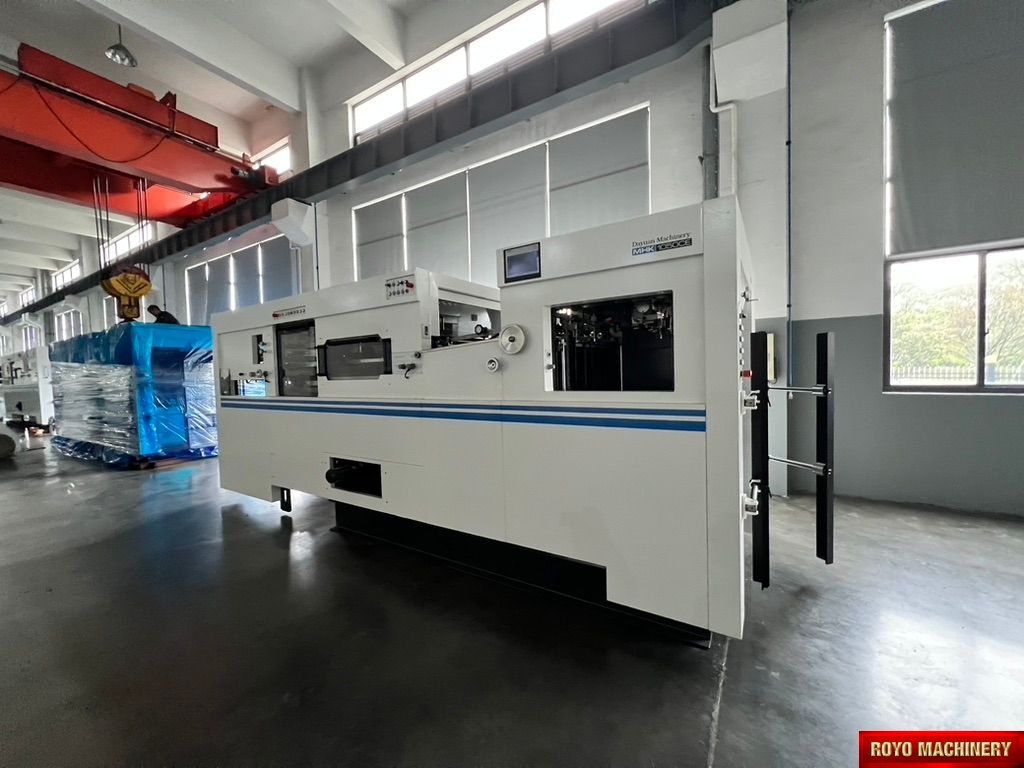

New Die Cutter Royo Machinery

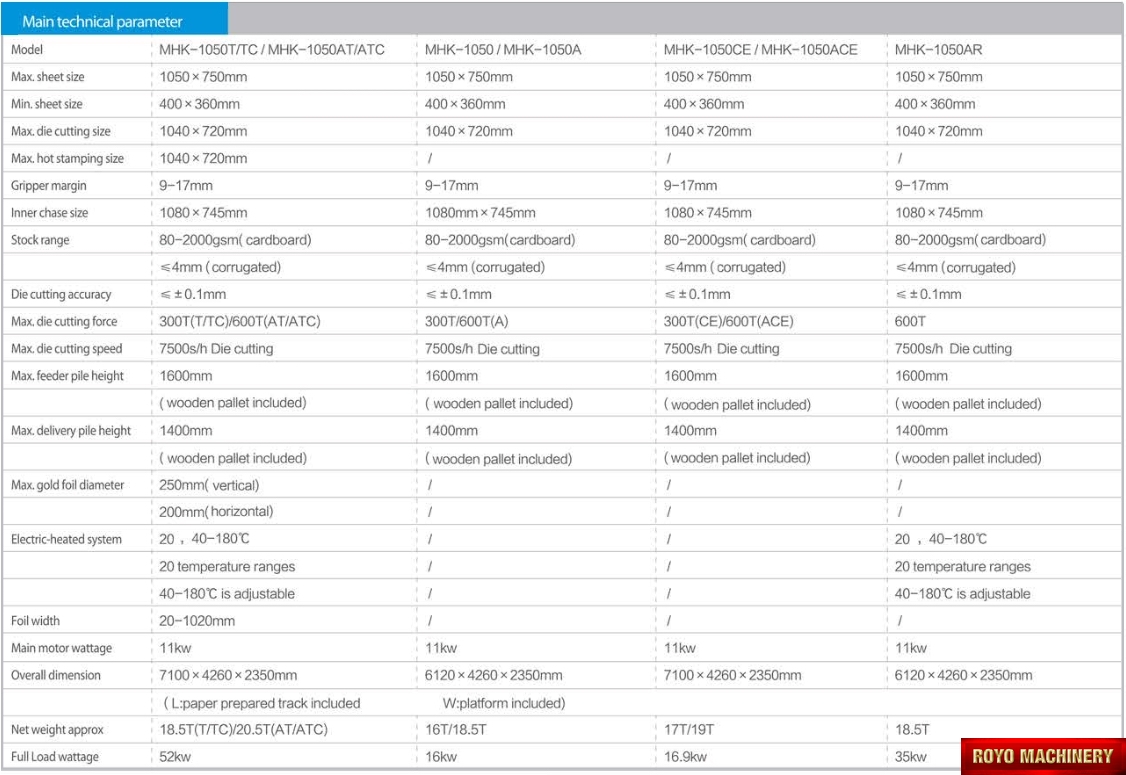

Feeding Pile Height: 1600mm, Corrugated board up to 4mm, Central lubrication with auto pump , Specifications are subject to change without notice, Digital LED control panel, Die cutting chase pneumatic locking mechanism, Delivery Pile Height 1400 mm, CE Standard Machine, Automatic pressure adjustment, Air clutch, Frontal back and side registration mechanism, Gripper Margin: 9-17 mm, Heavy Duty, Heavy duty gripper bars, Machine control via color touch screen, Max. die cutting size: 1040 x 720mm, Max. paper size: 1050 x 750mm, Max. Speed: 7500 strokes per hour, Non stop sampling for test sheet removal, Non-stop delivery with rolling curtain, Non-stop feeder and delivery, Pneumatic die plate ejector, Pneumatic flap for test sheet removal, Pre-loader, Pull or Push side lay on both sides, Recommended height of cutting rules: 23.8mm, Remote service ready, Step-less speed control, Total Power: 11kw, Total Weight: 17 Tons, Ultrasonic & Mechanical double-sheet detector, Voltage: 220V 3PH 60Hz, Dimensions: 7100 x 4260x 2350mm, Inner chase size: 1080 x 745 mm, Die cutting precision: +/- 0.1mm
